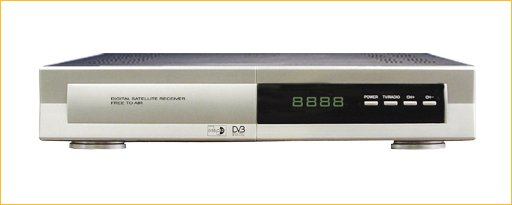

Digital Satellite Receiver
 |
| ★ Powerful single
chip: STi5518 |
★ QPSK WAVEFORM(C/KU
Band, SCPC/MCPC) |
| ★ Picture in Graphics
(PIG) support |
★ 256 Color On
Screen Display & Variable Color setting |
| ★ Tele-Text &
Sub-Title Support |
★ Various Channel
List Edit Functions |
| ★ DiSEqC 1.2, 1.0
Version Compatible |
★(FAV/LOCK/MOVE/DEL/ADD/RENAME/SORT) |
| ★ Upgrading through
PC to unit and unit to unit |
★ Last Channel
Memory |
| ★ 4000 Digital
channels (3000TV + 1000Radio) |
★ Event Timers |
| ★ 50 satellite/1000TP
Programmable |
★ PAL - NTSC Auto-conversion
system |
| ★ Manual PID Insertion and auto Scan Function |
★ Parental Lock for
Channel & Menu |
| ★ 4:3, 16:9 Screen Format Selectable |
★ software solution (Fun
card embedded) for Nagravision 1, Viaccess1, Secam 1. |
| Hardware
Specifications: |
| TUNER |
|
| IF Input frequency |
950-2150MHz |
| Output frequency |
950-2150MH |
| Input impedance |
75Ω |
| Input level |
-65dBm - 25dBm |
LNB power supply
|
13/18V/OFF, MAX.400mA |
| Demodulation: |
|
Waveform |
QPSK |
|
Symbol rate |
2-45
MS/s |
|
Roll off factor |
0.35 |
|
Reed Solomon decoder |
RS(204 , 188, 8) |
|
Viterbi decode rate |
1/2, 2/3, 3/4, 5/6, 7/8,
auto |
| TS
Demultiplexer: |
|
|
Demultiplex |
CD ISO/IEC 13818-1 |
|
Input max. bit rate |
60Mbps(serial)/7.5Mbps(parallel)
|
| Video
Decoder: |
|
|
Standard |
CD ISO/IEC 13818-2,
MPEG-2 MP@ML |
|
Video aspect ratio |
4:3 or 16:9 |
|
Resolution |
Max. 720 x 576 |
| Audio
Decoder |
|
|
Standard |
ISO/IEC 13818-3 Layer I & II |
|
Audio channel |
Mono, Dual-channel, Stereo, Joint
Stereo |
|
Sampling frequency |
32, 44.1, 48 KHz |
| CPU
& Memory: |
|
|
CPU |
STMicroelectronics STi5518 |
|
Clock frequency |
81MHz |
|
SDRAM memory |
8M byte |
|
Flash memory |
2M byte |
| RS-232
Interface: |
|
|
Connector |
9-pin D type, female |
|
Protocol |
RS-232 asynchronous |
|
Baud rate |
Maximum of 625K
bps |
| AV
Output: |
|
|
Video de-emphasis |
CCIR REC.405-1, 625 lines |
|
Video output impedance |
75Ω |
|
Video output level |
1.0 Vp_p |
|
Audio output |
Mono, left/right, stereo |
|
Audio output frequency |
20Hz - 20 KHz |
|
Audio output impedance |
Low |
| SPDIF |
For optical |
| Others: |
|
| Front panel |
One size optional |
size: 340mm |
| |
4-digit LED Indicator |
Channel number, status for V-BOX |
| |
4Buttons |
Up/Down/Radio/TV/Power for V-BOX |
| Back panel |
IF input |
F-type connector |
| |
IF Loop through output |
F-type connector |
| |
RCA output |
4 RCA ( left/right audio, video, 0/12V) |
| |
RS-232 interface |
9-pin D type, female |
| |
SCART Sockets |
Optional |
| Remote control |
Model |
IR (carrier: 38 KHz) |
| |
Battery |
2 x 1.5V AAA |
| |
Keys |
30 |
| |
Operating Temp |
0℃ ~ 40 ℃ |
| |
Volume |
340X246X60mm |
| |
Power consumption |
Max. 30W |
| |
Power supply |
AC 85 ~ 265V, 50~60Hz |
| |
Weight |
2.5Kg |
|
|
|
